Crowcon Clip SGD Personal Single Gas Detector — H₂S / CO / O₂ | UAE
Product Description

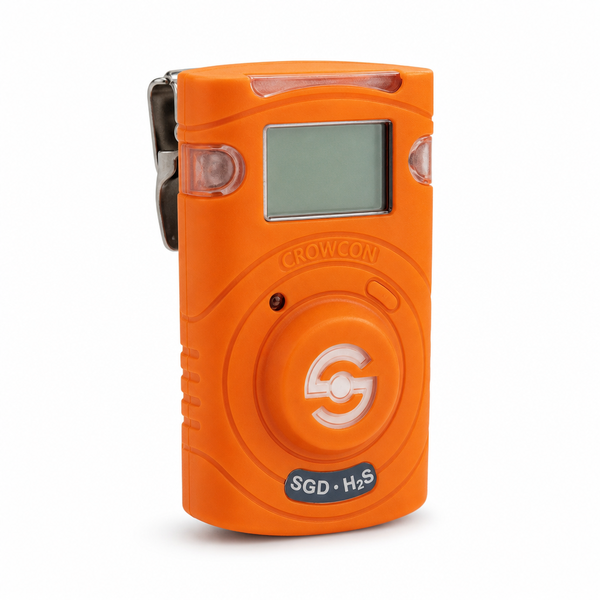

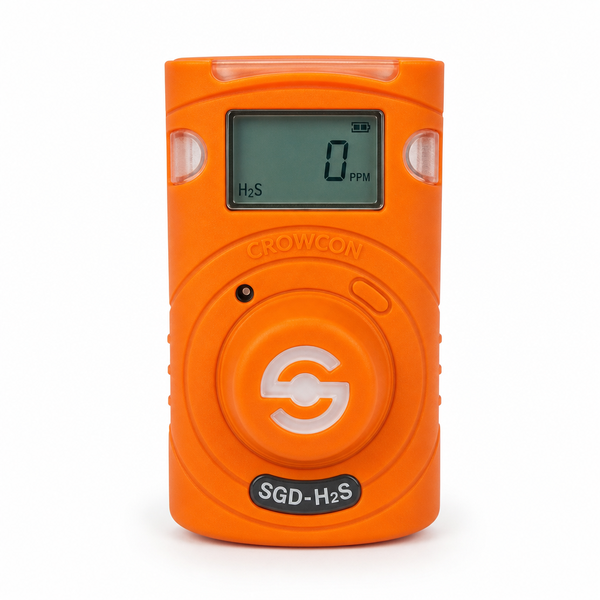

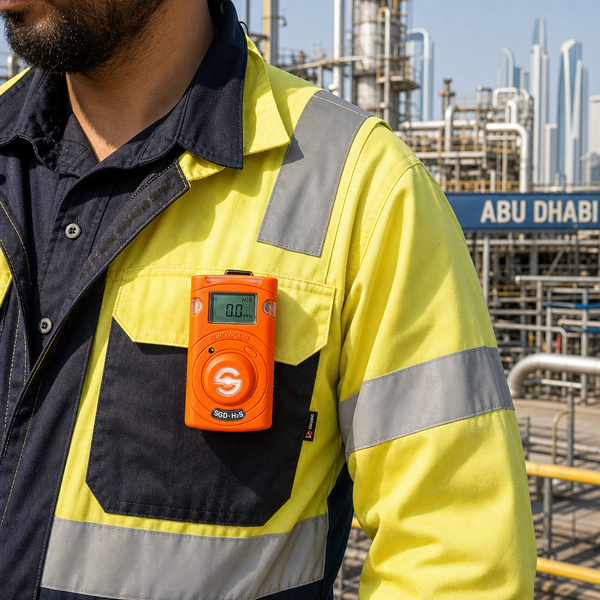

The Crowcon Clip SGD is a Personal Maintenance-Free Single Gas Detector designed to keep workers safe in hazardous environments across Abu Dhabi, Dubai, and the wider UAE. Whether you operate in oil refineries, petrochemical plants, construction sites, or offshore facilities, the Clip SGD delivers reliable, continuous gas monitoring in a pocket-sized device.

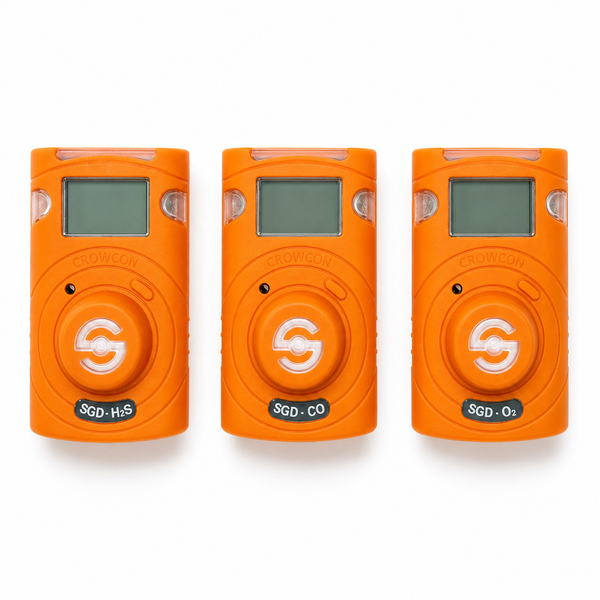

Engineered for the demanding conditions of the Middle East — from ADNOC facilities in Abu Dhabi to JAFZA industrial zones in Dubai — the Clip SGD monitors hydrogen sulfide (H₂S), carbon monoxide (CO), or oxygen (O₂) with a fixed 2-year operational lifespan and zero routine maintenance required.
With a single-button interface, triple alarm system (audible 90dB, visual LEDs, and vibration), IP66/IP67 ingress protection, and ATEX/IECEx certification for use in explosive atmospheres, the Clip SGD is the go-to choice for safety managers and HSE teams throughout the Gulf region.
Available through Belfast Instrumentation & Control Equipments - LLC — your trusted safety equipment partner in the UAE.
Key Features & Benefits
|
🔧 Maintenance-Free Design |
2-year fixed operational life — no sensor replacements or recalibrations required during service life |
|
🔔 Triple Alarm System |
90 dB audible alert, top/front/side visual LEDs, and vibration alert ensure you never miss a danger signal |
|
💧 IP66 & IP67 Rated |
Fully protected against dust ingress and water immersion — built for harsh UAE industrial environments |
|
⚡ Single Button Operation |
Minimal training required; easy to operate even with gloves on |
|
📊 Real-Time LCD Display |
Continuous countdown and real-time gas concentration readings — 0.1 ppm resolution for H₂S |
|
🔒 ATEX & IECEx Certified |
Class 1 Div 1 & 2, Groups A–D, T4; ATEX II 1G Ex ia IIC T4 Ga — approved for explosive atmospheres |
|
📋 Event Log |
Records the most recent 30 alarm events for compliance and incident reporting |
|
🌡️ Wide Temperature Range |
Operates from -65°C to +50°C (-86°F to +122°F) — ideal for UAE summer heat and cold-store environments |
|
🔗 Configurable Alarm Levels |
Changeable alarm thresholds via Clip SGD Docking Station to meet site-specific regulations |
|
📦 Compact & Lightweight |
91 x 54 x 32mm | 93g — comfortable to wear for a full shift without fatigue |
Full Product Specifications
|
Dimensions |
91 x 54 x 32 mm (3.6 x 2.1 x 1.3 ins) |
|
Weight |
93g / 2.7oz (toxic models) | 104g / 3.7oz (O₂ model) |
|
Operating Temperature |
-65°C to +50°C (-86°F to +122°F) for H₂S, CO and O₂ |
|
Humidity |
15% to 90% RH (non-condensing) |
|
Alarms |
Top, front & side visual LEDs | 90 dB audible at 3.9 in | Vibration |
|
Sensor Range — H₂S |
0 – 100 ppm |
|
Sensor Range — CO |
0 – 300 ppm |
|
Sensor Range — O₂ |
0 – 30% vol. |
|
Resolution |
0.1 ppm (H₂S) |
|
Ingress Protection |
IP66 and IP67 |
|
Event Log |
Most recent 30 events |
|
Operational Life |
2 years (>2900 alarm minutes) |
|
Shelf Life |
6 months prior to activation (shown on box label) |
|
Self-Test |
On activation and every 20 hours; continuous automatic battery integrity tests |
|
Certification |
UL-913 & CSA-C22.2 No.157 | Class 1 Div 1 & 2, Groups A, B, C and D, T4 |
|
ATEX |
II 1G Ex ia IIC T4 Ga |
|
IECEx |
Ex ia IIC T4 Ga |
|
EMC Compliance |
EMC Directive 2014/30 | FCC CFR 47 Part 15 | ICES-003 |
|
Communication |
USB IR link for event download and configuration (CL-IR-Link) |
|
Crowcon Connect |
Not compatible |
|
Country of Origin |
United Kingdom |
|
Manufacturer |
Crowcon Detection Instruments Ltd |
Shopify Variants
|
Gas Type |
Part Number |
Alarm 1 |
Alarm 2 |
Variant Name |
|
H₂S |
CL-H-2 |
2 ppm |
5 ppm |
H₂S — Low Alarm: 2 ppm / High Alarm: 5 ppm |
|
H₂S |
CL-H-5 |
5 ppm |
10 ppm |
H₂S — Low Alarm: 5 ppm / High Alarm: 10 ppm |
|
H₂S |
CLH-10 |
10 ppm |
15 ppm |
H₂S — Low Alarm: 10 ppm / High Alarm: 15 ppm |
|
CO |
CL-C-25 |
25 ppm |
50 ppm |
CO — Low Alarm: 25 ppm / High Alarm: 50 ppm |
|
CO |
CL-C-30 |
30 ppm |
100 ppm |
CO — Low Alarm: 30 ppm / High Alarm: 100 ppm |
|
CO |
CL-C-35 |
35 ppm |
50 ppm |
CO — Low Alarm: 35 ppm / High Alarm: 50 ppm |
|
O₂ |
CL-O-19 |
19% vol. |
23.5% vol. |
O₂ — Low Alarm: 19% / High Alarm: 23.5% |
|
O₂ |
CL-O-19.5 |
19.5% vol. |
23.5% vol. |
O₂ — Low Alarm: 19.5% / High Alarm: 23.5% |
