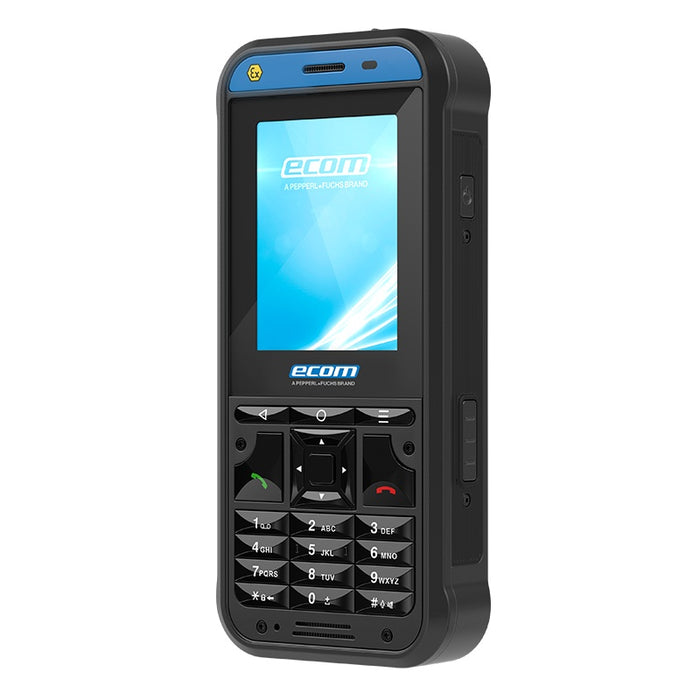

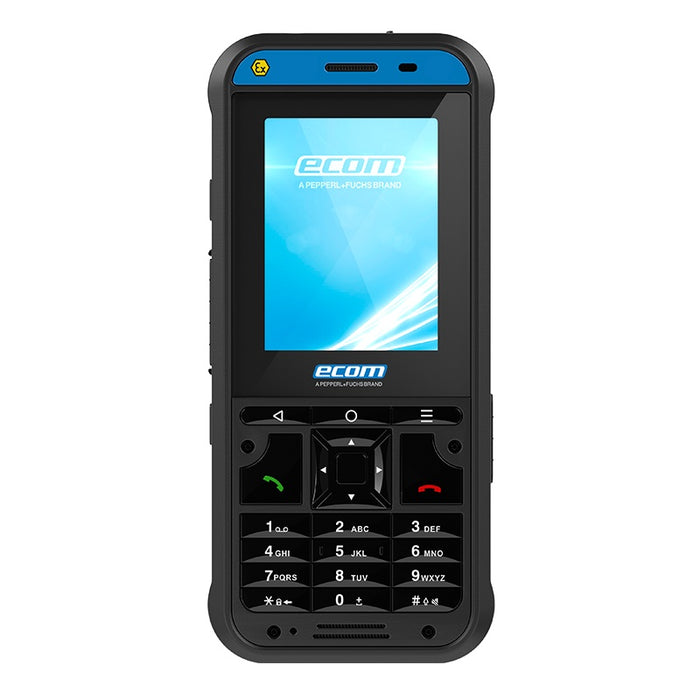

ECOM Ex-Handy 10 DZ1 Intrinsically Safe 4G Phone

The ECOM Ex-Handy 10 DZ1 combines 4G connectivity, dedicated hardware keys and a compact touchscreen for demanding industrial work. Glove and wet-mode support helps you operate the phone while working, and its sunlight-readable display keeps information visible outdoors.

Key features

• 2.6-inch (6.6 cm) capacitive multi-touch display with shock- and scratch-resistant Gorilla Glass, glove mode and wet mode.
• SIM-unlocked 4G/LTE connectivity with Nano SIM support.
• 4400 mAh battery.
• Programmable, alarm, power, multifunction and volume keys, plus hardware buttons for Android features.
• IP68 protection and MIL-STD-810G, as listed in the supplied datasheet.

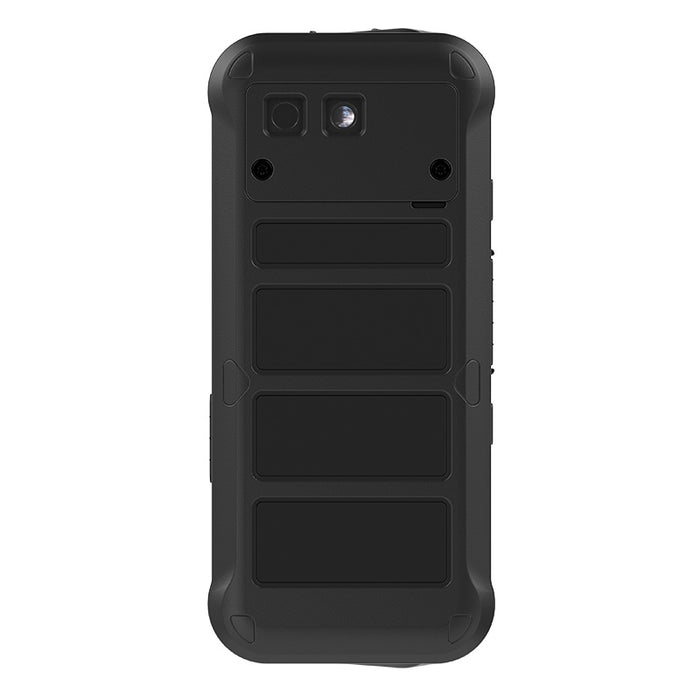

• Optional 8 MP autofocus rear camera with LED flash and torchlight function. Camera inclusion depends on the supplied configuration.

Technical specifications

• Operating system: Android 9 with Android Zero-Touch and Google Play.
• Processor: Qualcomm Snapdragon MSM8909 platform.
• Memory: 2 GB RAM and 16 GB ROM; microSD support up to 128 GB.
• Wi-Fi: 802.11 a/b/g/n/e/k/r/h, 2.4 GHz and 5 GHz.
• Bluetooth: 4.2 with Bluetooth Low Energy (BLE).
• Positioning: GPS, A-GPS, GLONASS and BeiDou.
• NFC connectivity.
• Ports: waterproof magnetic USB 2.0 connector and 3.5 mm jack with special ECOM mounting solution.
• Dimensions: 148 × 67 × 24 mm.
• Weight: approximately 330 g.
• Ambient temperature: −20°C to +60°C.

Cellular frequency bands

• 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71.
• 4G LTE TDD: B38, B39, B40, B41 (2540–2640 MHz).
• 3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz.
• 2G GSM: 850 / 900 / 1800 / 1900 MHz.

Hazardous-area approval markings

The supplied DZ1 datasheet lists the following markings:

• ATEX: II 2G Ex ib op is IIC T4 Gb IP64; II 2D Ex ib op is IIIC T120°C Db.
• IECEx: Ex ib op is IIC T4 Gb IP64; Ex ib op is IIIC T120°C Db.
• CSA (North America): Class I, II, III, Division 1, Groups A–G, T4; Ex ib IIC T4 Gb / Ex ib IIIC T120°C Db; CL I, Zone 1 AEx ib op is IIC T4 Gb; Zone 21 AEx ib IIIC T120°C Db.

Protection is listed separately as IP68 in the technical specifications; the gas approval markings above include IP64. Verify the supplied device configuration, certificate and manufacturer safety instructions for your intended application.
